BuildSoft PowerConnect

PowerConnect is the perfect software to quick and easy design different types of steel connections: moment connections, shear connections, column bases and tubular connections.

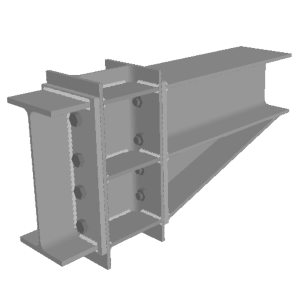

MOMENT CONNECTIONS
  • End plate, angles or welded
  • Extras: haunches, stiffeners...
  • Optimal bolt positions
  • M, V and N
  • Rotational stiffness graph

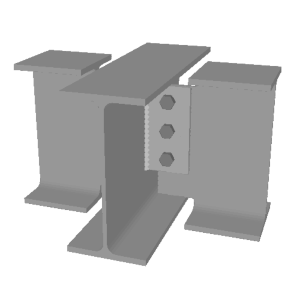

SHEAR CONNECTIONS
  • Shear end plate
  • Fin or single plate
  • Angles
  • Optimal bolt positions
  • V and N

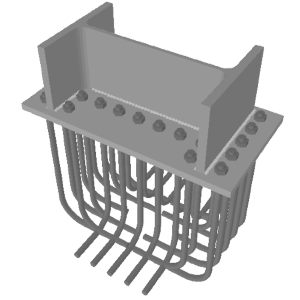

COLUMN BASES
  • I or rectangular cross-section
  • Stiffeners and cramps
  • Straight or bent anchors
  • M, V and N
  • Rotational stiffness graph

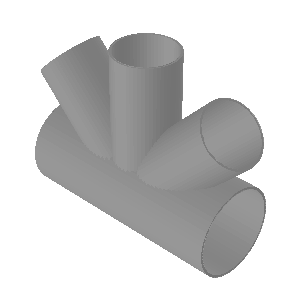

TUBULAR CONNECTIONS
  • Type T, Y, DY, X, K, N, KT & DK
  • Round, square, rectangle or I cross- sections
  • M_i, M_o and N

Experience the ease of use

Bolted beam to beam
Bolted beam to column
Bolted tubular column base

Key features

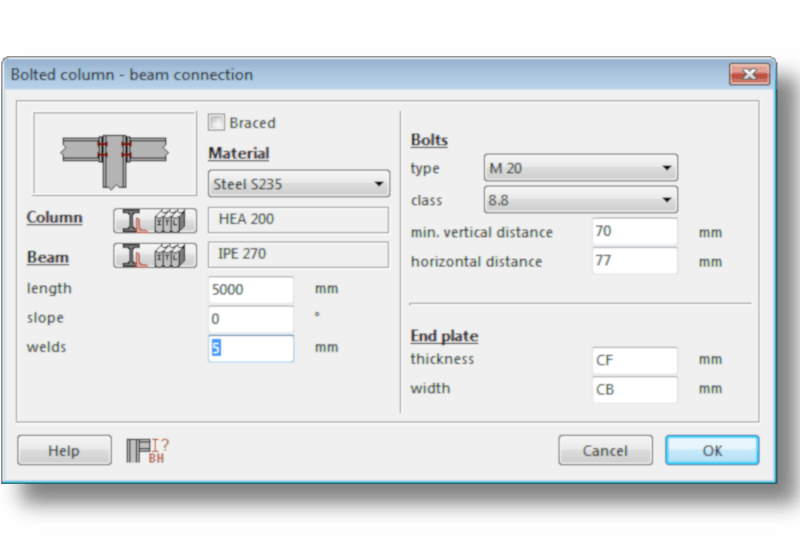

Input

Easy and fast definition of connections from an extensive librabry. Quick graphical editing directly on the 3D representation.

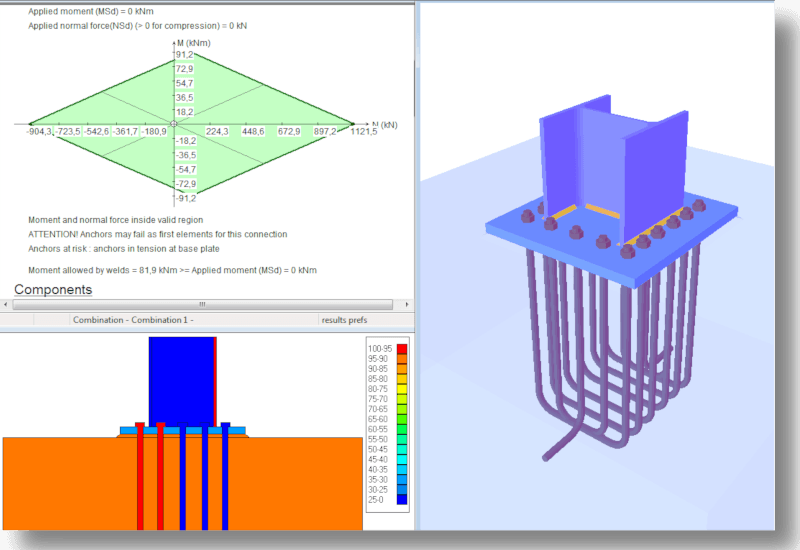

Analysis

Fast identification of undersized and oversized components through colour coding on connection geometry.

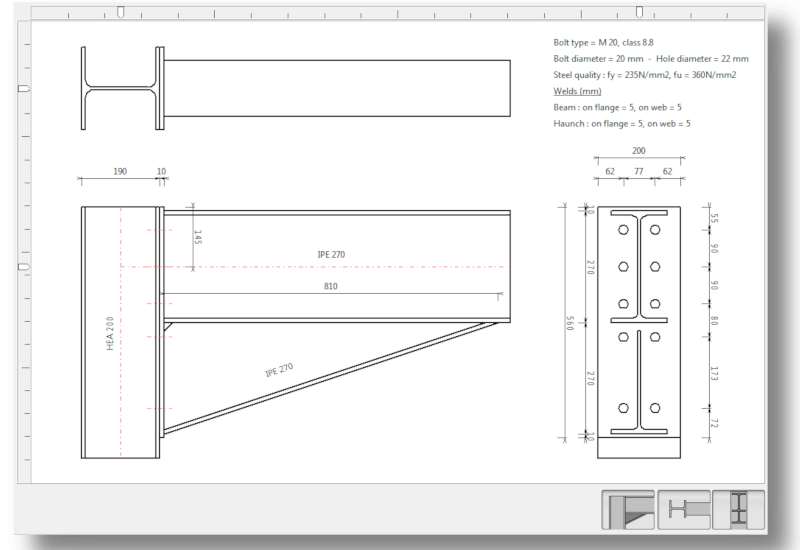

Reports and drawings

Creation of drawings including annotation and automated creation of design analysis report with preview capability.
